First Look at Profoto B1 500 AirTTL Battery Powered Monolight Flash

Hands-on experience with ProFoto B1 AirTTL strobe - at California's beach

What will happen if you marry E-TTL speedlite and a hi-end studio monolight?

Here is what came up from Sweden engineers  from ProFoto:

Profoto B1 500 AirTTL Battery Powered Monolight Flash
This is a quick shot we got in the studio – with B1 Air in “slave” mode: this is how ¬†cookies (in Russian they called “sushki”) were highlighted.

We got a pair of ProFoto B1 500 AirTTL Battery Powered Monolight Flash for a KelbyOne WorldWide photo walk (October, 11th – signup here), and this is my first experience with this amazing strobe.

this is not a comprehensive review, but a very first user experience I want to share with our readers. The whole review will be created after few weeks of shooting with Profoto B1 Рin and out the studio.



Profoto B1 500 AirTTL on a beach – the video

Few shots we got with this ProFoto B1 test on the beach is below

Simple “strobist-like” shots with a single “unmodified” light. Watch for more fun shots soon:-)

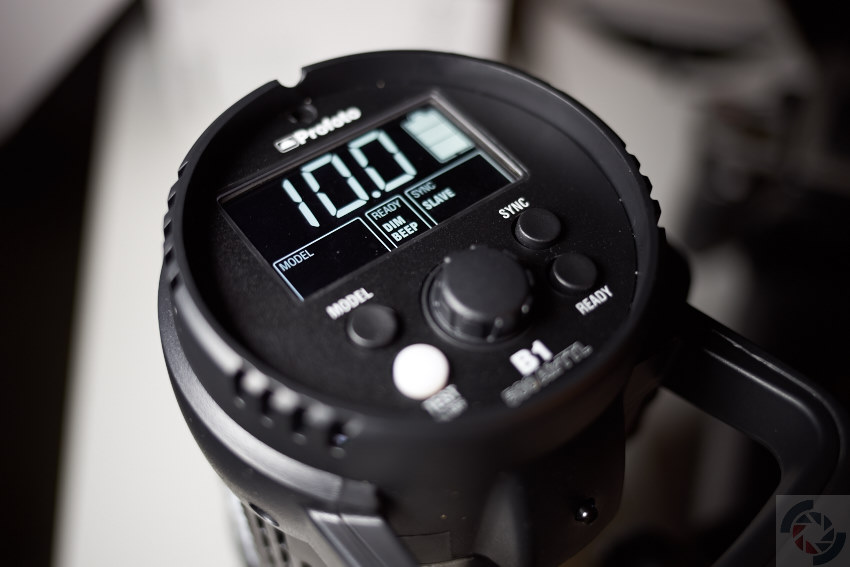

Profoto B1 AitTTL back panel  Рeasy to read, easy to use:

Profoto B1 500 AirTTL

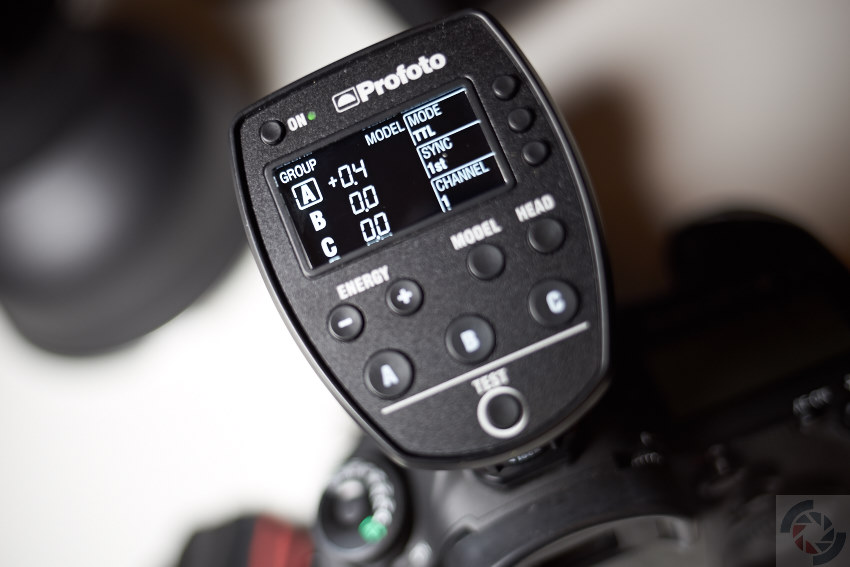

Profoto B1 AitTTL Canon camera transmitter:

B1 500 AirTTL Specification:

  • Max energy:500Ws
  • Energy range:9 f-stops (2-500Ws)
  • Energy control increments:1/10 or full f-stops
  • Recycling time:0.1-1.9 (Quick burst up to 20 flashes/second)
  • Max modeling light (W):20W LED (Output eqvivalent to 70W Halogen)
  • Modeling light control:Off, Proportional, Free (5-100%)
  • Mode control:Freeze (shortest flash duration) or Normal (color balance) mode
  • Flash duration Normal mode (t0.5):1/11,000s (2Ws) – 1/1,000s (500Ws)
  • Flash duration Freeze mode (t0.5):1/19,000s (2Ws) – 1/1,000s (500Ws)
  • Energy stability Normal mode:+-1/20 f-stop flash to flash
  • Energy stability Freeze mode:+-1/20 f-stop flash to flash
  • Color stability Normal mode:+-150K over range; +-20K flash to flash
  • Color stability Freeze mode:+-800K over range; +-50K flash to flash
  • Energy control increments:1/10 or full f-stops
  • Guide number @ 2m / 100 ISO with Magnum Reflector:45 2/10
  • Input power supply:Exchangeble Lithium-Ion Battery 14.4V/3Ah
  • Battery capacity:Up to 220 full power flashes

Syncronization and Control

  • Sync socket(s):1
  • Wire sync voltage:Compliant to ISO 10330 standard
  • Wire sync connector:3.5mm Mini-Phono
  • Photocell/IR-slave and switch:Yes
  • Radio sync & control:Yes, Built in AirTTL supporting wireless sync, control and TTL. (Requires Air Remote TTL. Sold separately.)
  • Radio sync range:Up to 300m (1000ft)
  • MAC / PC control:Yes, via optional Profoto Air USB transceiver and Profoto Studio software.

Miscellaneous

  • Function display:Multifunction LCD display
  • Fan cooling:Yes, thermally controlled fan speed for low noice level.
  • Ready signaling:Yes, ready lamp, dim and/or switchable beep sound.
  • Auto dumping:Yes
  • USB interface:Yes, USB Mini port for FW upgrading
  • Quick burst:Quick burst capability of up to 20 flashes per second.

Measurements

  • Diameter:14cm (5.5″)
  • Length:31cm (12.2″)
  • Height:21cm (8.3″)
  • Weight:3kg (Including batteries) 6.6 LBS 3kg (Including batteries)

Watch for updates ¬†– we’ll have much more after SF Photowalk! Fashion shoot set is ready:

_DSC0507-Sonya600-test

Where to buy ProFoto B1 AIRTTL:

Screen Shot 2014-10-08 at 9.12.10 PM

2 responses on "First Look at Profoto B1 500 AirTTL Battery Powered Monolight Flash"

  1. Hi! Did you use Ettl on the B1 to photograph the children on the beach? I’m undecided wether to get a Phottix Indra 500 or the B1, price of B1 has been putting me off. I wonder how these two would compare side by side in Ettl outdoors? I’ve searched YouTube for a comparison shootout but, nothing!

  2. HI Alex Do these B1 500 Air lights freeze splashes? Are they better than the Elinchrom Quadra ELB?
    Thank
